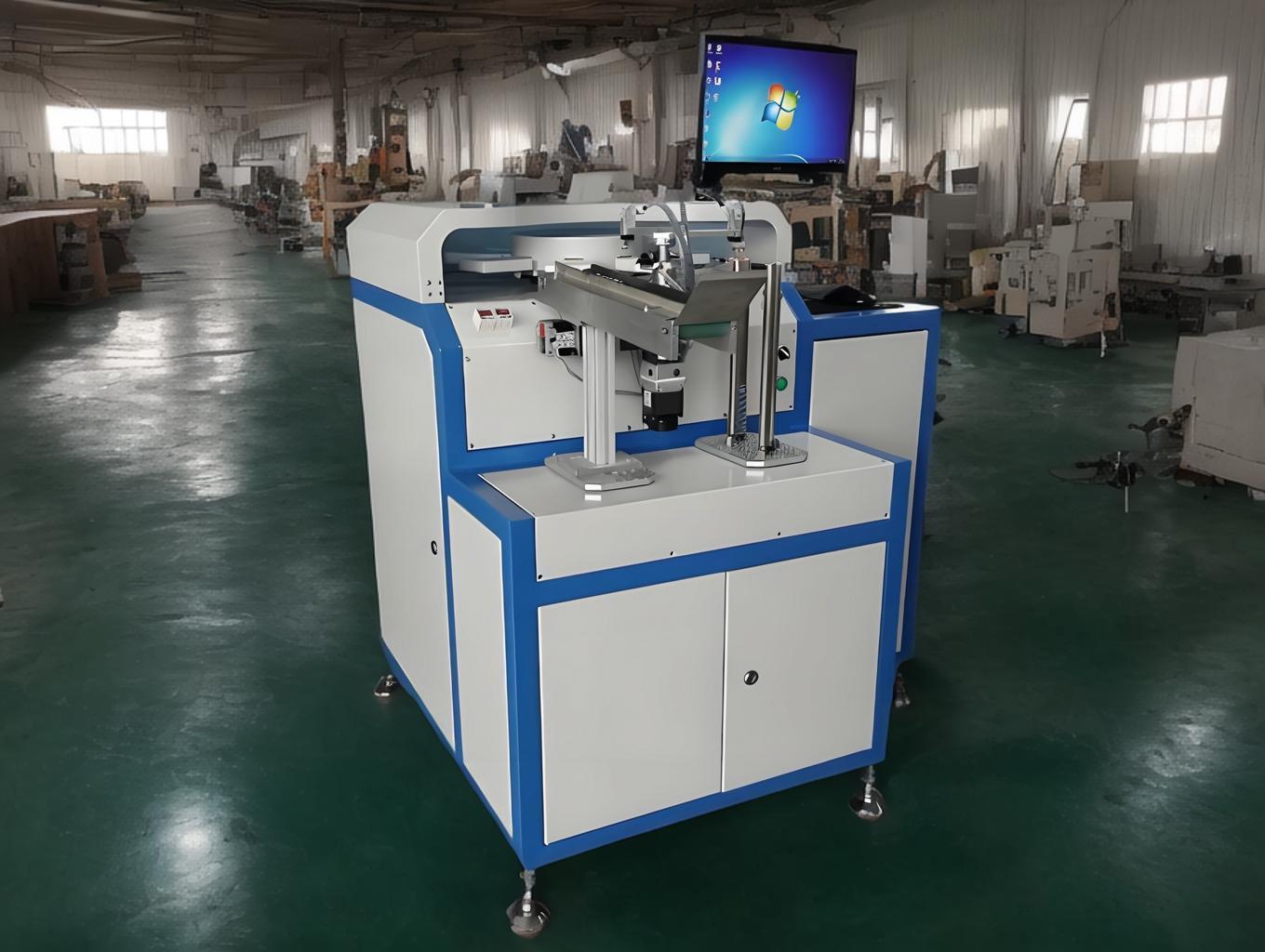

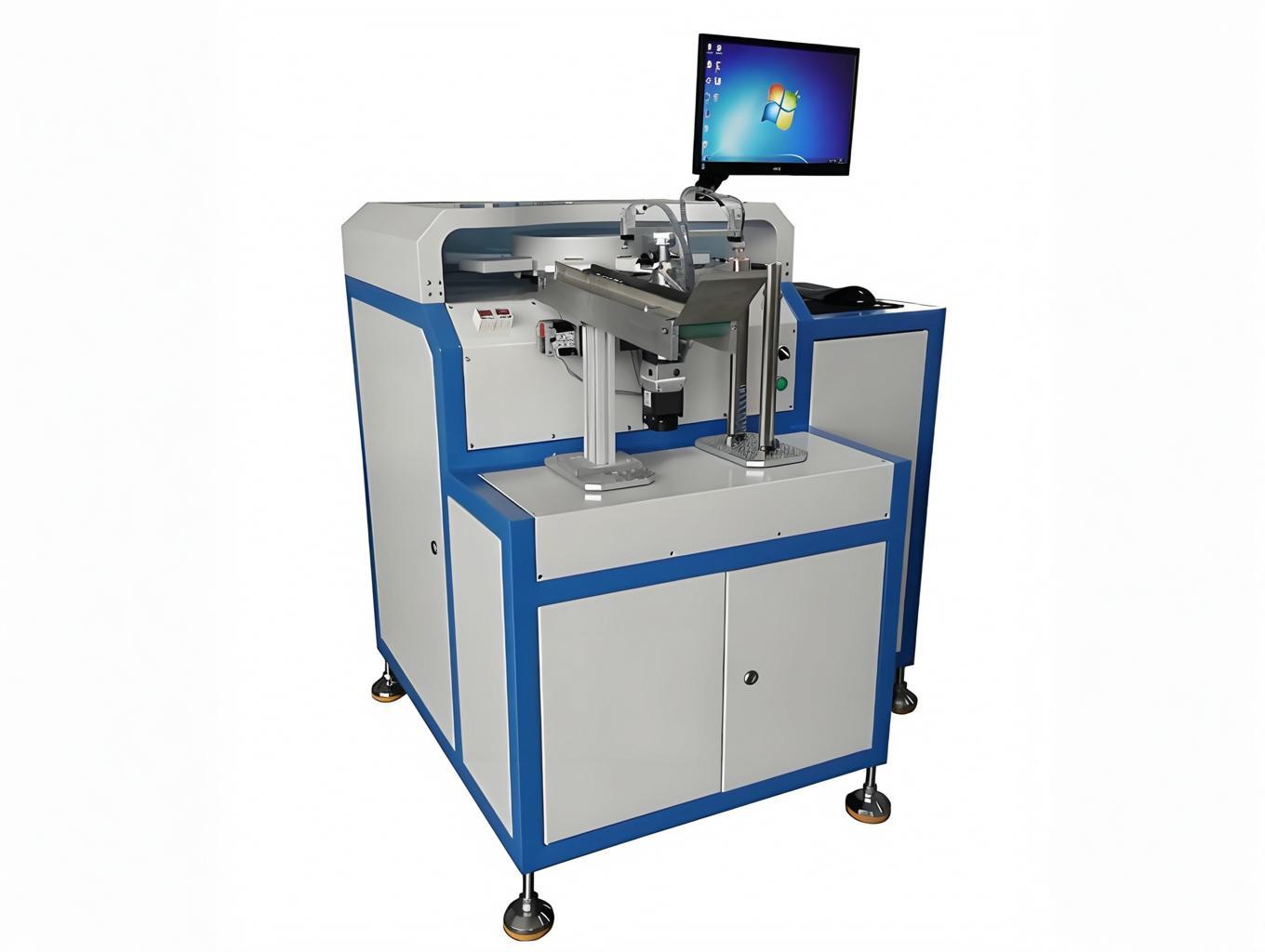

Overview:The Non-Standard Contactless Card Issuing Machine is a high-performance automated solution designed to streamline the data entry process for non-standard contactless cards. With the increasing demand for specialized card types such as public transportation cards and membership cards, this machine is built to meet the growing market needs for efficiency and precision.

Main Features:

1.Versatile Application: Specially designed for encoding non-standard contactless cards, including uniquely shaped cards like transportation cards, membership cards, and more.

2.Efficient Encoding: Equipped with 8 card encoding workstations, each with its own card reader. These workstations rotate in a circular motion on a rotary platform, ensuring maximum efficiency and significantly improving the production speed.

3.Automatic Card Positioning: Each encoding station automatically positions the card, eliminating the need for manual adjustments and saving valuable production time, especially when handling various card shapes.

4.High Precision & Stability: The working disk rotary platform is driven by a servo motor, ensuring high operating accuracy and stability throughout the process.

5.Flexible Card Size Handling: The feeding and collecting boxes feature adjustable legs, making it easy to handle cards of various sizes, with the maximum card size up to 80mm x 100mm.

6.Continuous Production: The machine is equipped with two feeding boxes, enabling easy swapping of cards without stopping production, ensuring continuous and streamlined operations.

7.Gentle Card Handling: Cards are fed and collected via a single card suction system, which minimizes friction and prevents scratches, protecting the surface quality of the cards.

8.PLC Control System: The entire machine is controlled via PLC, ensuring ease of operation and simple parameter adjustments to fit specific production needs.

9.Customizable Features: In addition to the standard functionalities, the machine can be upgraded with laser engraving coding, OCR character recognition, and other specialized functions to meet customer-specific requirements.

Specifications:

• Power Supply: AC220V, 50/60Hz
• Power Rating: 1KW
• Operation System: Windows 7
• Operating Speed: Approximately 4500 pcs/h
• Card Type: Non-Standard Cards, Max Size 80mm x 100mm
• Dimensions: L1100 x W950 x H1500mm
• Weight: Approximately 200kg

• Operator: 1 person




•

Q: What makes this machine unique?
A: It is designed for personalizing and issuing non-standard shaped contactless cards.

Q: What card shapes can it handle?
A: Supports custom shapes like key fobs, wristbands, and异形 cards.

Q: What is the issuing speed?
A: Processes 500–1,500 cards per hour depending on complexity.

Q: Can it handle different materials?
A: Yes. Supports PVC, PET, ABS, and other custom materials.

Q: Is data security ensured?
A: Yes. Advanced encryption and secure data handling.

Q: Can it integrate with issuing systems?
A: Yes. Seamless integration with card issuing systems.

Q: What is the accuracy rate?
A: >99% personalization accuracy.

Q: Is the operation automated?
A: Yes. Fully automated feeding, personalization, and issuing.

Q: What safety features are included?
A: Emergency stop, safety guards, and data protection.

Q: What support is available?
A: Full technical support and training for custom applications.
