Fully Automated Sealing, Labeling, Sorting, and Verification for High-Volume Card Mailing

Short Description:

Automate your card mailing logistics with the ZWD-AL-805. This machine handles sealing, addressing, verification, and sorting of envelopes containing contactless cards. Achieve high efficiency and perfect accuracy for bulk operations. Request a quote.

CONTACT NOW

Product Details

Product Tags

Product Overview

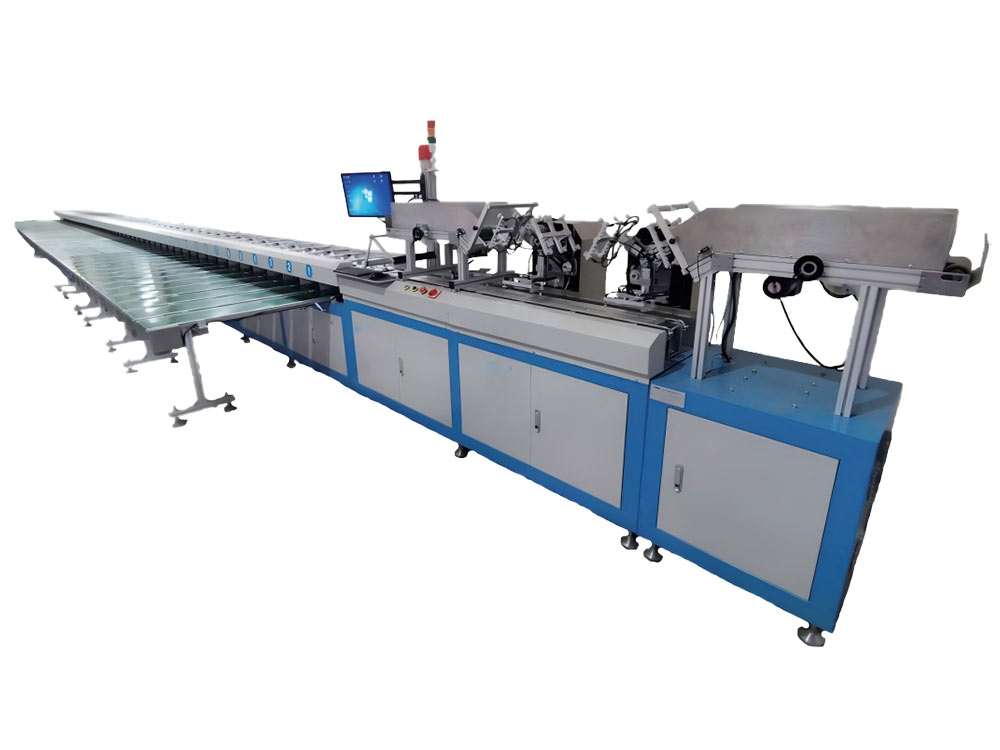

The ZWD-AL-805 Auto Express Envelope Sorting Machine is a fully integrated, high-speed automation system designed for the complete processing of personalized card mailings. Engineered for banks, government printing facilities, public security bureaus, and card personalization centers, this end-to-end solution automates the entire workflow—from envelope feeding and barcode reading to recipient label printing, sealing, weighing, verification, and intelligent sorting.

By eliminating manual searching, printing, labeling, and sorting, the ZWD-AL-805 dramatically reduces labor costs, eliminates human error, and ensures that every envelope reaches the correct recipient with 100% accuracy.

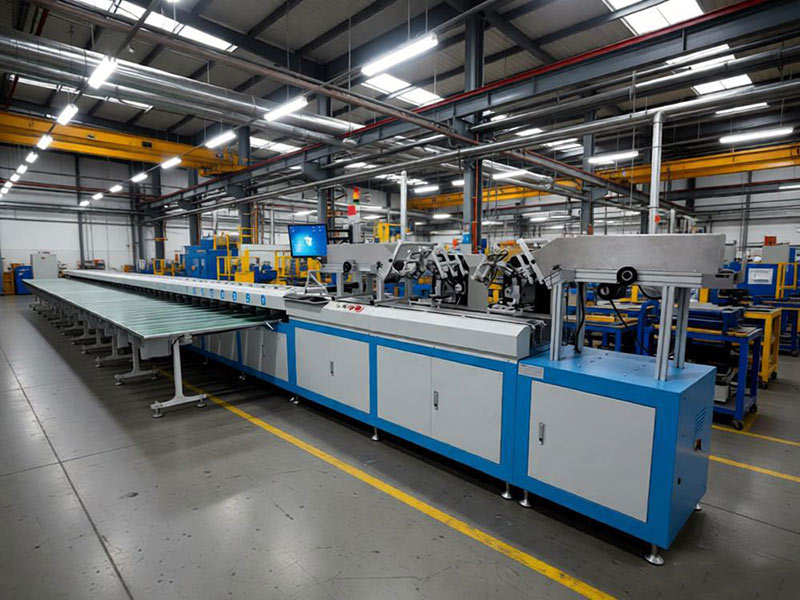

Fully Automated Sealing, Labeling, Sorting, and Verification for High-Volume Card Mailing(pic1)

Key Advantages

End-to-End Automation – Seamlessly integrates feeding, opening, barcode reading, packing, adhesive application, label printing, labeling, rechecking, weighing, and sorting.
High Throughput – Processes up to 8,500 envelopes per hour, making it ideal for large-scale card issuance programs.
100% Accuracy Guarantee – Multi-layer verification (barcode matching, rechecking, weighing) ensures zero labeling or addressing errors.
Intelligent Sorting – Automatically sorts envelopes into multiple destination boxes based on barcode data.
Modular, Expandable Design – Built from interchangeable functional modules for easy maintenance and future expansion.
Industrial-Grade Reliability – Designed for continuous operation (≥16 hours) with a service life of ≥10 years.

How It Works – Complete Workflow

The ZWD-AL-805 performs a seamless sequence of automated operations:

Step	Operation	Description
1	Express Envelope Feeding & Opening	Continuous drawing feed method with closed-loop motor vacuum suction for stable, jam-free operation.
2	Small Window Envelope Feeding	Pre-packaged card envelopes are automatically fed into the system.
3	Barcode Reading	Reads the barcode on the small window envelope at 100% identification rate.
4	Data Matching	Compares barcode data with computer records to retrieve the correct recipient information.
5	Insertion & Sealing	Small envelope is automatically inserted into the express cardboard envelope, followed by spray adhesive application and sealing.
6	Label Printing & Application	Recipient address label is printed and automatically dispensed onto the outer envelope surface.
7	Rechecking & Weighing	Barcode reader verifies the applied label matches the original envelope data. Integrated weighing confirms contents are correct.
8	Intelligent Sorting	Based on barcode information, envelopes are automatically sorted into designated receiving boxes.
9	Defect Rejection	Any envelope that fails reading, weighing, or labeling verification is automatically diverted to a waste/elimination box.

Key Features

1. Fully Automatic Operation

The machine requires minimal operator intervention. From feeding to sorting, every step is controlled and monitored automatically, ensuring consistent, high-speed production.

2. Continuous Feeding Design

Both express cardboard envelopes and small window envelopes use a continuous drawing feeding method, allowing non-stop operation without manual reloading during production runs.

3. 100% Barcode Identification Rate

Advanced barcode reading technology achieves a perfect 100% read rate, ensuring that no envelope proceeds without accurate data association.

4. Multi-Layer Verification for Zero Errors

Barcode Rechecking: After labeling, the system reads the applied label and compares it with the original envelope barcode.
Weighing Function: Detects missing cards or inserts to prevent incomplete packages from being shipped.

5. High-Speed Intelligent Sorting

Envelopes are automatically directed to multiple sorting boxes based on customer-defined criteria (e.g., destination region, postal route, delivery service). Sorting efficiency reaches 100%.

6. Modular Design for Scalability

The system is composed of interchangeable functional modules. Modules with identical functions can be swapped, and the system can be easily expanded as production volumes grow.

7. Industrial-Grade Construction

Continuous Operation: ≥16 hours
Control System Uptime: 32 hours
Design Life: ≥10 years
Standardized mechanical and control parts for reliable interchangeability

8. User-Friendly Maintenance

The control cabinet features a well-organized structure with clearly marked wiring points, simplifying troubleshooting and routine maintenance.

Technical Specifications

Parameter	Specification
Model	ZWD-AL-805
Dimensions (L×W×H)	20,800 × 2,000 × 1,700 mm
Weight	Approximately 4,000 kg
Power Supply	AC 380V, 50/60 Hz
Power Consumption	Approximately 7.5 kW
Processing Speed	Up to 8,500 envelopes/hour
Envelope Size (Customizable)	Length: 163–330 mm, Width: 89–230 mm, Weight: 40–200 g
Barcode Identification Rate	100%
Sorting Accuracy	100%
Operator Requirement	1 person
Continuous Operation	≥16 hours
Design Life	≥10 years

Applications

The ZWD-AL-805 is specifically designed for high-volume, secure mailing of personalized cards and documents, including:

Banking & Financial Services – Credit/debit card mailing, PIN mailers, welcome kits
Government Agencies – National ID cards, passports, residence permits, driver's licenses
Public Security Bureaus – Secure document distribution
Healthcare – Social security cards, health insurance cards
Telecommunications – SIM card mailing
Card Personalization Centers – Bulk mailing of personalized credentials

Why Choose the ZWD-AL-805?

Challenge	ZWD-AL-805 Solution
Manual searching, printing, and labeling are slow and error-prone	Fully automated from feeding to sorting – labor costs reduced by up to 80%
Address errors lead to customer complaints and reissuance costs	Multi-layer verification (barcode match + weighing + recheck) guarantees 100% accuracy
Sorting envelopes manually for different destinations is time-consuming	Automatic intelligent sorting into multiple boxes based on barcode data
Production stops when material runs out	Continuous drawing feeding method enables non-stop operation
Equipment maintenance is complex and costly	Modular design with interchangeable parts and clearly marked wiring
Existing systems cannot handle future volume growth	Scalable, expandable architecture with ≥10-year design life

Customer Benefits

Lower Operational Costs – Eliminate manual labor for searching, printing, labeling, and sorting
Faster Processing – 8,500 envelopes per hour enables next-day mailing for large card issuance programs
Zero Error Rate – 100% barcode identification, rechecking, and weighing ensure every package reaches the correct recipient
Full Traceability – Complete data logging for audit and compliance purposes
Scalable Investment – Modular design grows with your production needs
Reliable Uptime – Built for continuous operation with easy maintenance access

Conclusion

The ZWD-AL-805 Auto Express Envelope Sorting Machine is the ultimate automation solution for organizations that issue and mail high volumes of personalized cards. By integrating sealing, labeling, verification, and sorting into a single, high-speed platform, it eliminates manual errors, reduces labor costs, and ensures that every card reaches its intended recipient with 100% accuracy.

For banks, government agencies, and card personalization centers looking to modernize their mailing operations, the ZWD-AL-805 delivers proven reliability, exceptional throughput, and a rapid return on investment.

Q1: What functions does this machine combine?
A1: It integrates sealing, labeling, sorting, and verification into one system for high-volume card mailing automation.

Q2: What is the processing capacity?
A2: 5,000–10,000 cards per hour, ideal for large-scale production and mailing operations.

Q3: Which envelope sizes are supported?
A3: Standard envelope sizes are supported. Custom sizes can be configured upon request.

Q4: What is the labeling accuracy?
A4: ±0.5mm precision. Supports barcodes, QR codes, and address labels.

Q5: How does the sorting mechanism work?
A5: Sorts by address, region, priority, or custom rules. Configurable with multiple output bins.

Q6: What verification features are included?
A6: Checks card count, address completeness, label correctness, and seal quality automatically.

Q7: Can it integrate with postal systems?
A7: Yes. Generates standard postal data formats for seamless integration with postal services.

Q8: How many operators are needed?
A8: Only 1–2 operators to monitor the system and reload materials. Most processes are fully automated.

Q9: What is the machine footprint?
A9: Approx. L8000mm × W2000mm × H1800mm. Layout can be optimized for your facility.

Q10: How much energy does it save?
A10: Uses energy-efficient motors and smart controls, saving over 60% compared to manual operations.
