Product Overview

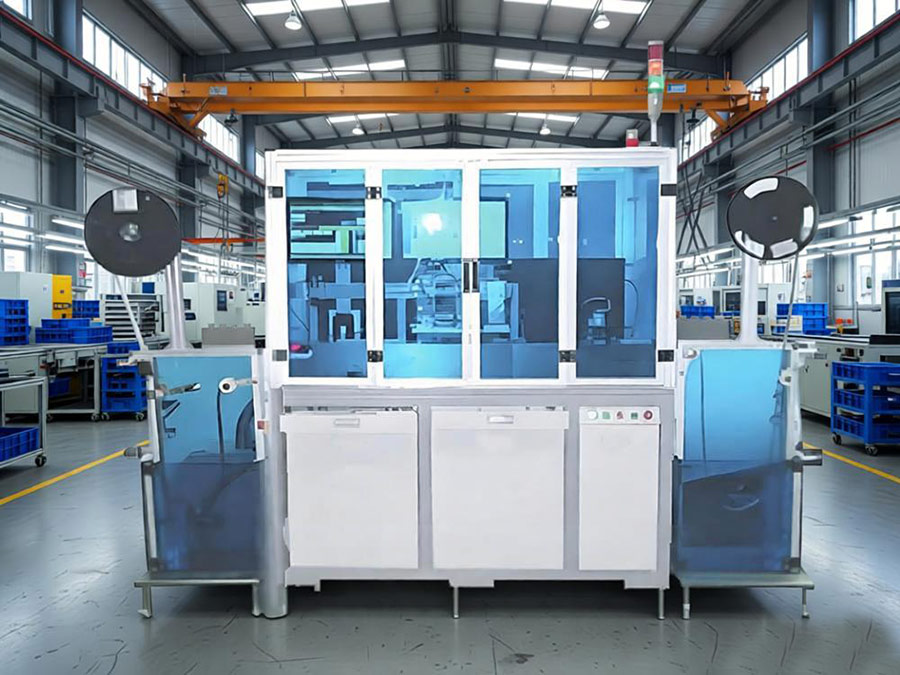

The ZWD-LTM-52 Automatic Module Testing Machine is a high-performance, fully automated system designed for electrical performance testing of IC modules in tape format. Engineered for smart card manufacturers, module suppliers, and personalization centers, this machine provides rapid, reliable, and precise testing for contact, contactless, and dual-i

nterface (combine) modules.

With an advanced IPC (Industrial PC) and servo control system at its core, the ZWD-LTM-52 delivers exceptional throughput, consistent accuracy, and seamless integration into high-volume production lines. The system also features an integrated bad module marker station, ensuring that only quality modules proceed to downstream assembly processes.

Key Advantages

• High Throughput – Up to 53,000 UPH for contact modules (32 heads) and 40,000 UPH for contactless/combine modules (24 heads) based on 0.5-second test time.

• Universal Module Testing – Supports contact, contactless, and dual-interface (combine) module tapes on a single platform.

• IPC + Servo Control – Industrial PC and servo system ensure precise, stable, and repeatable testing.

• Automated Bad Module Marking – Defective modules are automatically identified and marked for downstream rejection.

• Optional Vision System – Camera-based module counting for enhanced traceability and quality control.

• Flexible Reader Options – Compatible with imported readers (Smartware, German) or domestic readers (64–128 heads).

Key Features

1. IPC and Servo Control System

The machine is powered by an industrial PC (IPC) working in concert with a high-precision servo system. This combination ensures synchronized control of all mechanical and testing functions, delivering consistent results even at maximum throughput.

2. Three Testing Modes in One Machine

3. Bad Module Marker Station

Modules that fail electrical testing are automatically marked by the integrated marker station. This visual indication allows downstream equipment or operators to easily identify and reject defective modules, preventing faulty components from being assembled into finished cards.

4. Optional Vision System (Camera)

For manufacturers requiring enhanced traceability and quality control, an optional vision system is available. The camera precisely counts modules on the tape, providing real-time production data and enabling accurate yield calculations.

5. Flexible Reader Configuration

The ZWD-LTM-52 supports a wide range of module readers to accommodate different testing protocols and regional standards:

• Imported Readers – Smartware or German readers for high-precision, standards-compliant testing

• Domestic Readers – Cost-effective options available in 64 or 128 head configurations

Technical Specifications

Optional Configurations

Applications

The ZWD-LTM-52 is ideal for manufacturers and testing laboratories involved in the production of:

• Contact Smart Cards – Payment cards, ID cards, SIM cards

• Contactless Smart Cards – RFID cards, NFC cards, access control cards

• Dual-Interface Cards – Cards combining contact and contactless functionality

• Module Tape Suppliers – Quality assurance testing before shipment to card manufacturers

• Government & Secure Documents – National IDs, e-passports, healthcare cards

• Telecommunications – SIM and subscriber identity modules

• The Automatic Module Testing Machine is the final gatekeeper for quality assurance, ensuring 100% functional reliability for critical card applications:

• Banking & Payment Security: Mandatory for testing EMV chip functionality before issuance, preventing fraud and ensuring transaction reliability for banks and payment processors.
• Government & Identity Programs: Essential for verifying the data integrity of national ID cards and e-Passports, ensuring every card meets strict security protocols.
• Telecommunications (SIM Cards): Rapidly tests thousands of SIM cards for network connectivity and chip functionality, reducing rejection rates for mobile operators.
• Transportation & Transit Systems: Ensures contactless transit cards function flawlessly in high-traffic turnstiles, minimizing passenger delays and system downtime.
• Healthcare & Insurance: Verifies the data storage and read/write capabilities of patient and insurance cards, crucial for accurate medical record access.
• High-Security Access Control: Tests RFID and NFC cards for secure building access, ensuring no compromised cards enter the system.

• Why Zowinda? Our testing machine offers real-time defect detection and data logging, providing traceability for quality control audits and reducing waste.

Why Choose the ZWD-LTM-52?

Customer Benefits

• Maximized Production Efficiency – Test up to 53,000 modules per hour, eliminating bottlenecks in card manufacturing lines.

• Reduced Material Waste – Bad module marking prevents defective components from being used in downstream processes.

• Lower Cost Per Test – High-speed, automated operation reduces labor and per-unit testing costs.

• Flexible Investment – Choose only the options you need (vision, reader type) and upgrade as requirements grow.

• Compliance Ready – Supports testing protocols required for international card schemes and government certifications.

Conclusion

The ZWD-LTM-52 Automatic Module Testing Machine offers smart card and module manufacturers a powerful combination of speed, flexibility, and precision. With the ability to test contact, contactless, and dual-interface modules on a single platform, throughput rates up to 53,000 UPH, and optional vision and reader configurations, this machine is a future-proof investment for any high-volume production environment.

By integrating the ZWD-LTM-52 into your quality assurance workflow, you can ensure that only fully functional modules reach your card assembly lines—reducing waste, improving yields, and delivering superior finished products to your customers.

Q: What is the purpose of this machine?
A: It automatically tests the functionality and performance of IC modules to ensure quality before production.

Q: What parameters are tested?
A: Tests voltage, current, frequency, read/write functions, and encryption performance.

Q: How fast is the testing process?
A: Each module takes 0.5–2 seconds. Throughput is 2,000–4,000 modules per hour.

Q: What is the test accuracy?
A: High precision with ±1% accuracy, meeting strict industry standards.

Q: Which module types are supported?
A: Supports various IC, RFID, and NFC modules.

Q: Can test standards be customized?
A: Yes. Users can define specific test parameters and pass/fail criteria.

Q: How are defective modules handled?
A: The system automatically sorts defective units and generates detailed test reports for traceability.

Q: Is specialized training required?
A: No. The operation is simple, and basic training is sufficient for operators.

Q: How is test data managed?
A: A built-in database stores, queries, and exports test data, supporting big data analysis.

Q: How reliable is the equipment?
A: Built with industrial-grade components, offering an MTBF (Mean Time Between Failures) of over 10,000 hours.
