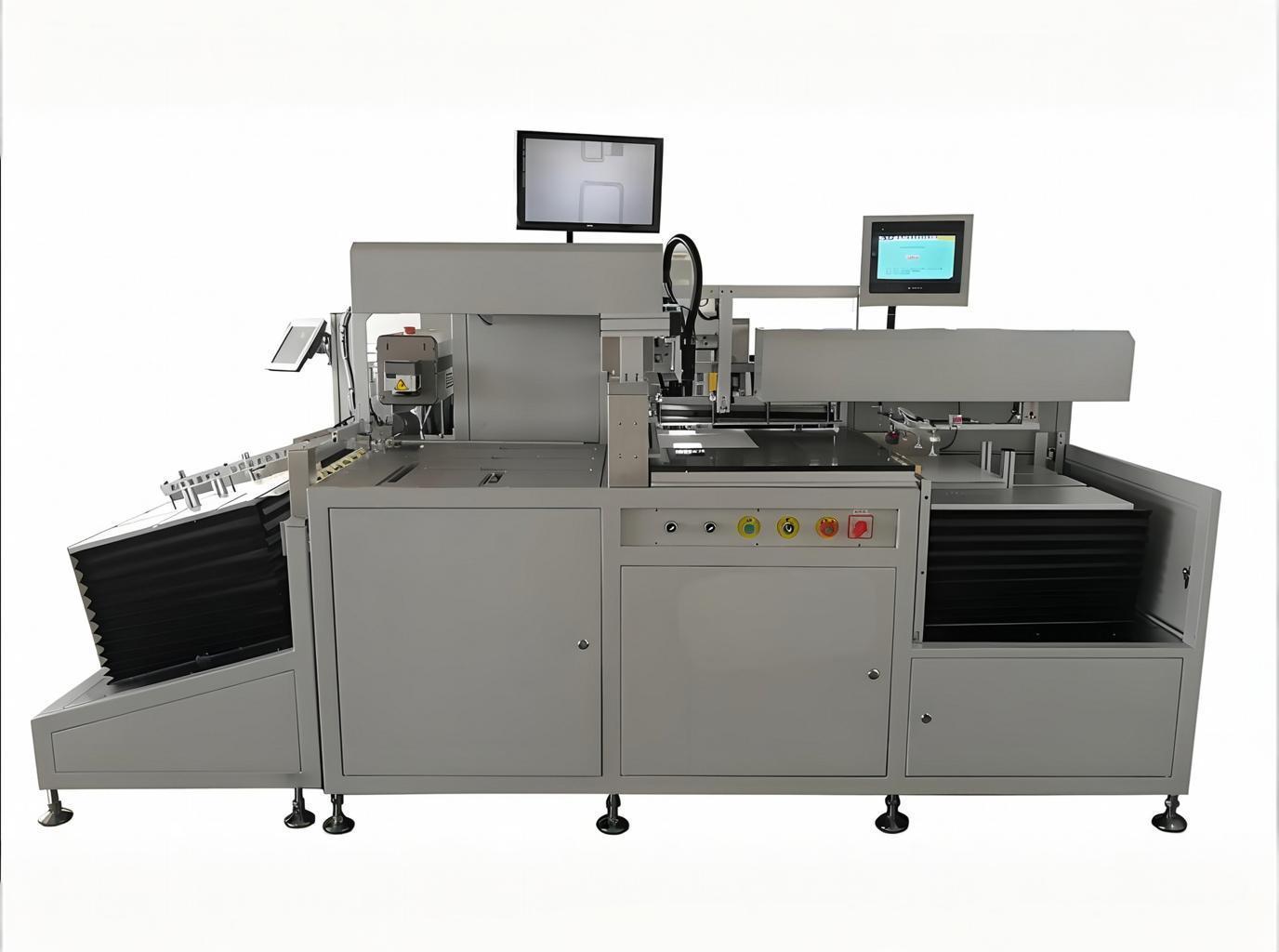

Streamline Your Inlay Sheet Cutting with Zowinda’s Advanced Sheet Shearing Machine (with Laser)

At Zowinda Technology Co., Ltd., we are proud to introduce our state-of-the-art Sheet Shearing Machine (with Laser), designed for the most precise and efficient cutting of inlay sheets. This fully automated system seamlessly integrates advanced vision technology and laser engraving, making it the ideal solution for high-speed, high-accuracy sheet cutting and marking.

Key Features:

1.Automatic Inlay Sheet Right-Angle Shearing: Our machine performs precise right-angle cutting of inlay sheets automatically, offering unmatched efficiency and quality.

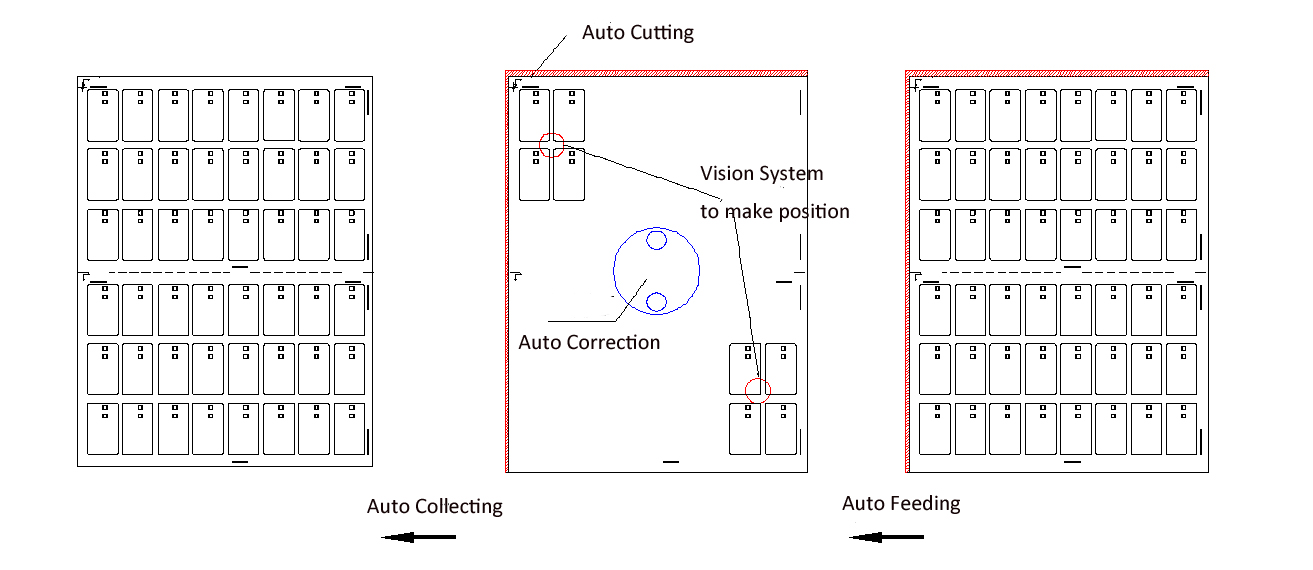

2.Vision System with High Accuracy: Equipped with two high-precision cameras, the machine accurately identifies the position of inlays, ensuring a cutting accuracy of ±0.015mm. The location of each sheet is automatically corrected for perfect alignment.

3.PLC + HMI Control: The machine is operated through a user-friendly PLC and HMI system, making it easy to set up, control, and adjust parameters for different cutting requirements.

4.Automatic Feeding and Collecting: Designed for high-volume production, the machine features auto feeding and auto collecting capabilities, handling up to 700 sheets at a time with a feeding and collecting height of 280mm.

5.Laser Engraving for Marking: After cutting, the integrated laser engraving unit marks the upper left of each sheet automatically, ensuring consistent, high-quality marks for product identification.

6.Sheet Rotation Function: The machine has a rotation function, enabling it to cut all four edges of a sheet. After cutting the initial two edges, the sheets can be rotated for additional cuts, providing complete flexibility and precision.

7.Servo-Powered Shearing: The servo punching system ensures stable, low-noise operation and accommodates various sheet thicknesses, ensuring longevity and high cutting performance.

8.High-Quality Tools: The punching tools are made using CNC machinery, ensuring they are highly accurate and right-angled. These tools are also durable, and can be re-ground or replaced after extended use.

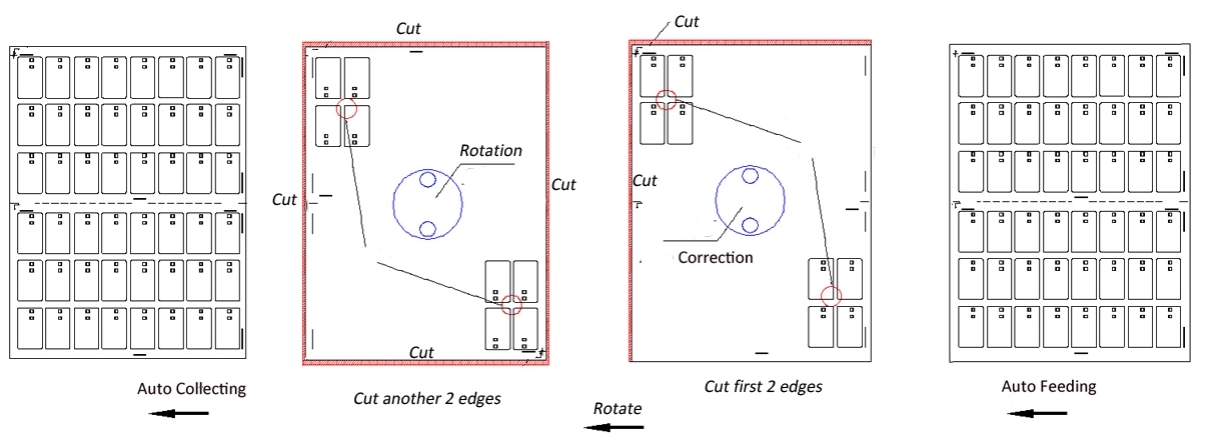

The machine also has the Sheets Rotation function, which could rotate the sheets into another 2 edge sides for cutting. So under this way, all 4 edges of the sheet could cut by this machine, and also the machine intergrates the Laser Engraving unit for laser marking. As below illustration shows:

Technical Specifications:

Applications:

The Sheet Shearing Machine (with Laser) is ideal for high-precision cutting and laser marking of various materials, including PVC, ABS, and other substrates used in the production of inlay sheets. The machine is widely used in industries such as:

• Smart Card Production: Cutting and marking sheets used in RFID and smart card manufacturing.
• Plastic Sheet Cutting: Ideal for cutting and engraving plastic sheets in various thicknesses.

• Label Manufacturing: Can be used for precise edge cutting and marking of labels for various applications.




•

Why Choose Zowinda’s Sheet Shearing Machine (with Laser)?

• Unmatched Precision: With a cutting accuracy of ±0.15mm, your products will always meet the highest standards.
• High Productivity: Capable of handling up to 800 sheets per hour, significantly boosting your production line’s efficiency.
• Easy Operation: The PLC + HMI control system makes operation intuitive and adjustment simple, even for high-volume production environments.
• Enhanced Flexibility: Capable of cutting up to 4 edges of a sheet and laser marking after shearing, making it highly versatile for various production requirements.

Upgrade your production line with Zowinda Technology’s Sheet Shearing Machine (with Laser) and experience precision, speed, and innovation at its best. Contact us today for more information or to request a demo.
