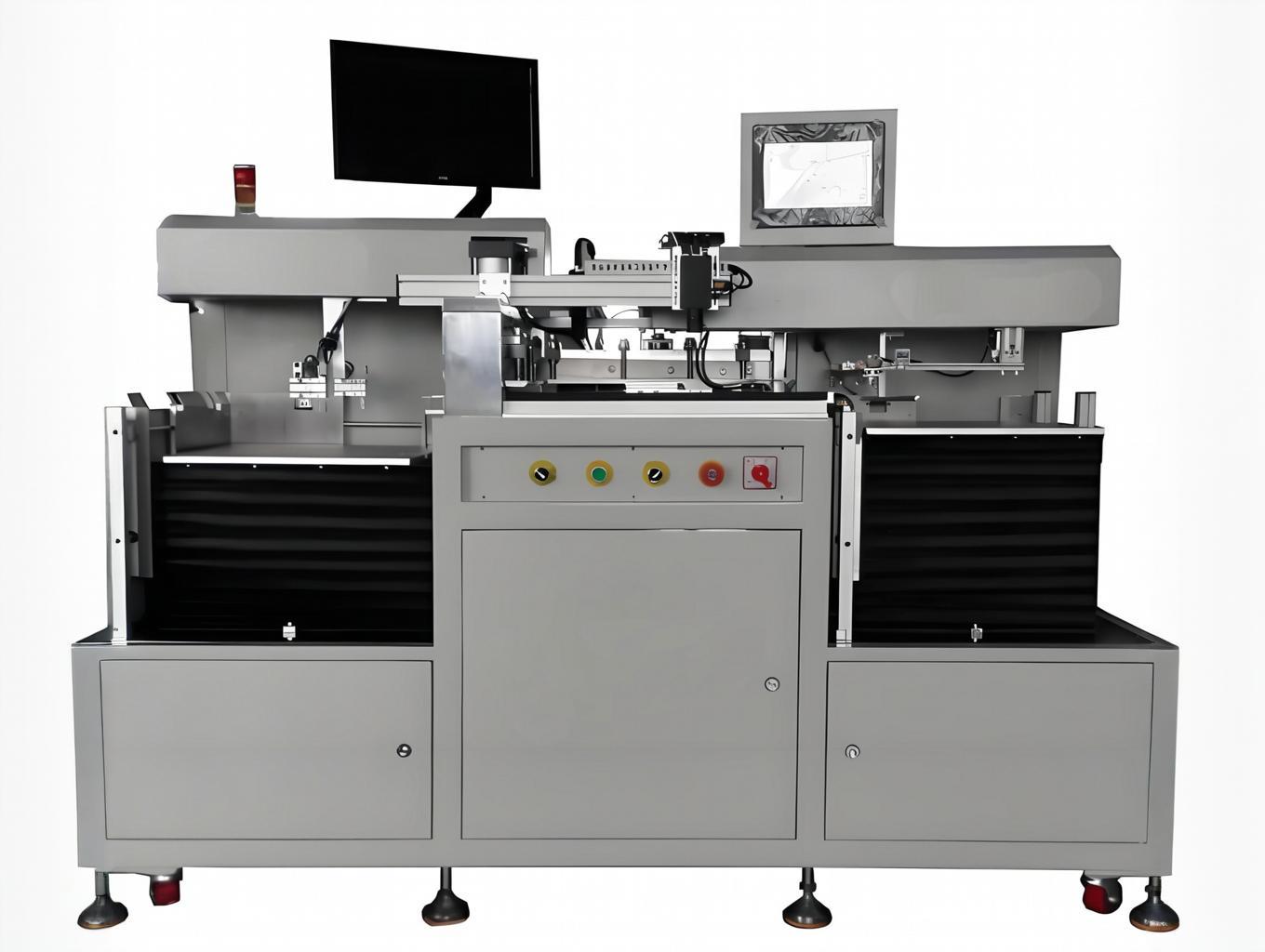

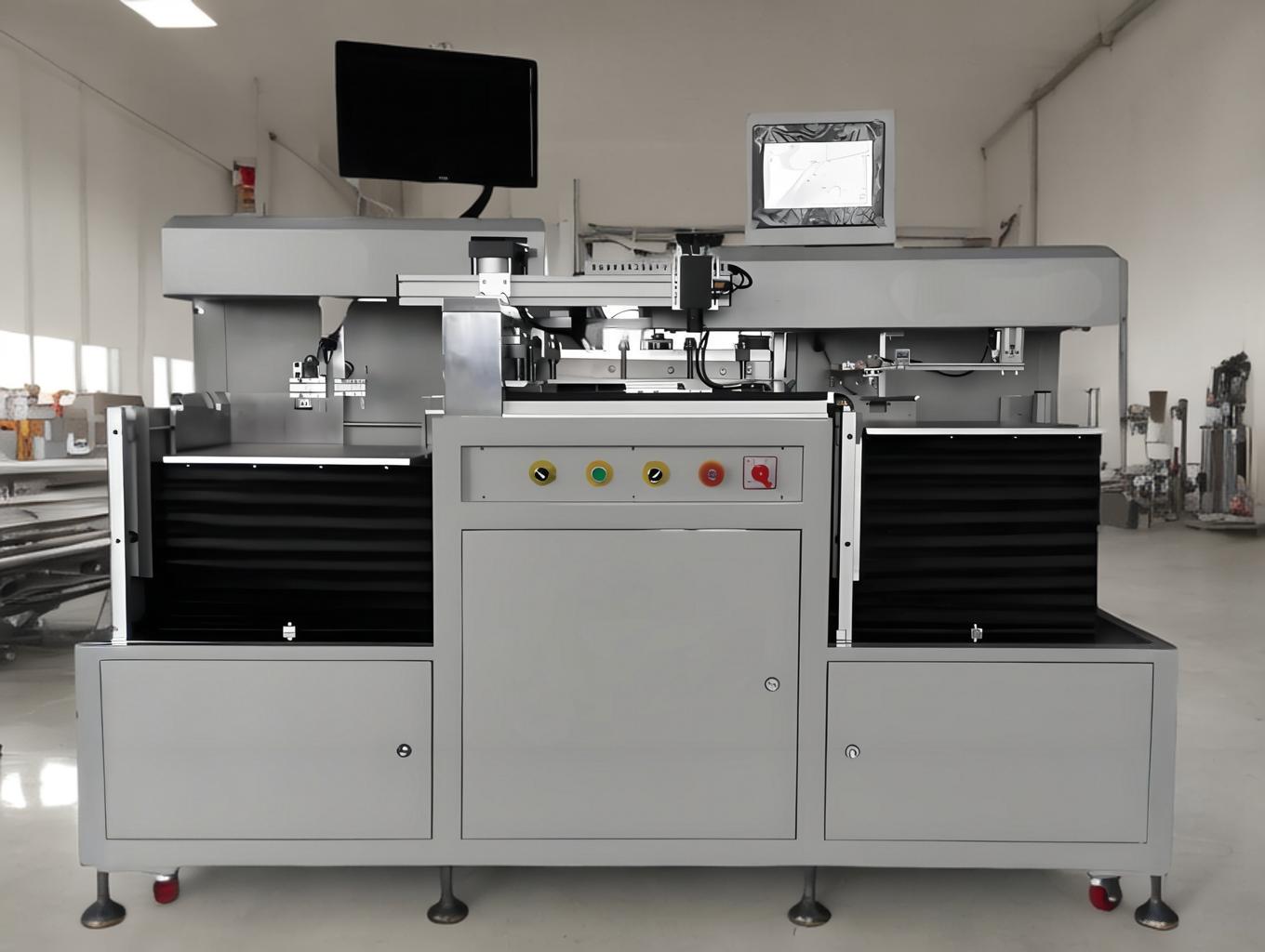

Achieve High Precision and Efficiency with Zowinda's Auto Sheet Shearing Machine

Zowinda Technology Co., Ltd. proudly presents its Auto Sheet Shearing Machine, a fully automated cutting solution designed for precise right-angle edge shearing of inlay sheets. Engineered for high productivity and accuracy, this machine is ideal for industries requiring efficient sheet cutting, such as RFID tag production and card manufacturing.

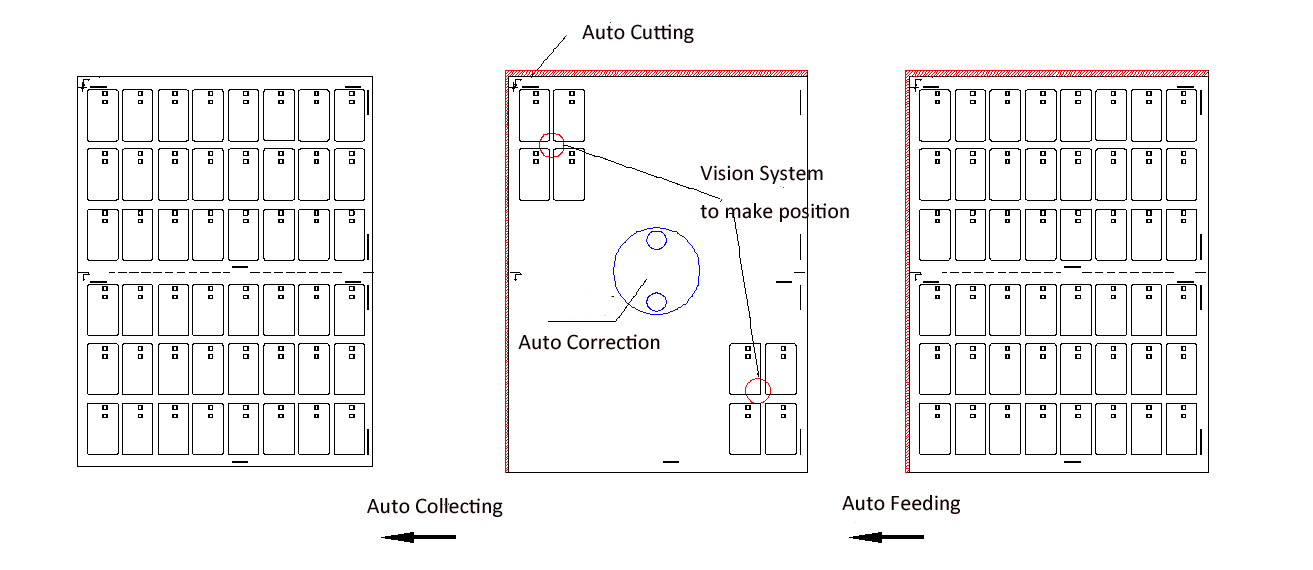

Equipped with advanced features like a vision positioning system and servo-controlled shearing, the Auto Sheet Shearing Machine guarantees precision cutting with minimal manual intervention. Its automated functions—including auto feeding, auto calibration, and auto collecting—make it a highly efficient tool for large-scale production.

Key Features:

1.Full Automation:
The machine operates autonomously with auto feeding, calibration, shearing, and collecting functions, reducing labor costs and enhancing productivity.

2.Vision System for High Precision:
Two sets of cameras are used for highly accurate inlay position recognition, achieving precision up to 0.03mm. This ensures consistent and error-free cutting.

3.Advanced Servo Systems:
With 3-axis servo systems, the machine automatically corrects shearing positions, ensuring consistent accuracy and stable performance throughout the cutting process.

4.CNC-Machined Punching Die:
The punching dies are CNC-machined to ensure high accuracy and perfect right-angle cuts, ensuring uniformity and precision across all sheets.

5.High-Speed Production:
Capable of processing 600-800 sheets per hour, the Auto Sheet Shearing Machine is designed for high throughput, making it suitable for large-scale manufacturing operations.

6.Compact Design:
With a compact size of L2000×W1020×H1450mm and weighing 650kg, the machine is easily integrated into any production line without occupying too much space.

7.Customizable Options:
The machine is adaptable to different cutting functions and can handle various sheet layouts like 3*8, 4*8, 5*5, 7*8, etc. It can also be customized to accommodate your specific production requirements.

Specifications

Applications:

• RFID Tag Production: The machine is perfect for cutting RFID tags, membership cards, and other similar inlay-based products.
• Card Manufacturing: Ideal for cutting sheets used in the production of plastic cards, identification cards, and more.

• Other Sheet Cutting Needs: Suited for cutting PVC, ABS, and other types of sheets in various thicknesses.




•

Why Choose Zowinda’s Auto Sheet Shearing Machine?

• Precision & Accuracy: Achieve cutting precision of around 0.2mm for perfect right-angle edges on every sheet.
• Increased Efficiency: The automated operation reduces manual labor and increases production speed, making it ideal for high-volume production lines.
• Easy to Operate: The PLC+HMI control system simplifies operation and parameter adjustments, making it user-friendly for operators.

• Versatility: The machine can handle different layouts and thicknesses, providing flexibility for a wide range of applications.

•
