Product Description

This machine is for 1 chip in 1, 2 chips in 1 and 4 chips in 1 GSM card personalization: contact encoding and laser graphical printing.

Product Details

Feature:
Zowinda has rich experience in manufacturing Smart Card making equipment.
With independent R&D ability, Zowinda machine is more flexible and less expensive.
Well developed after sales service systems cater to customers demand.

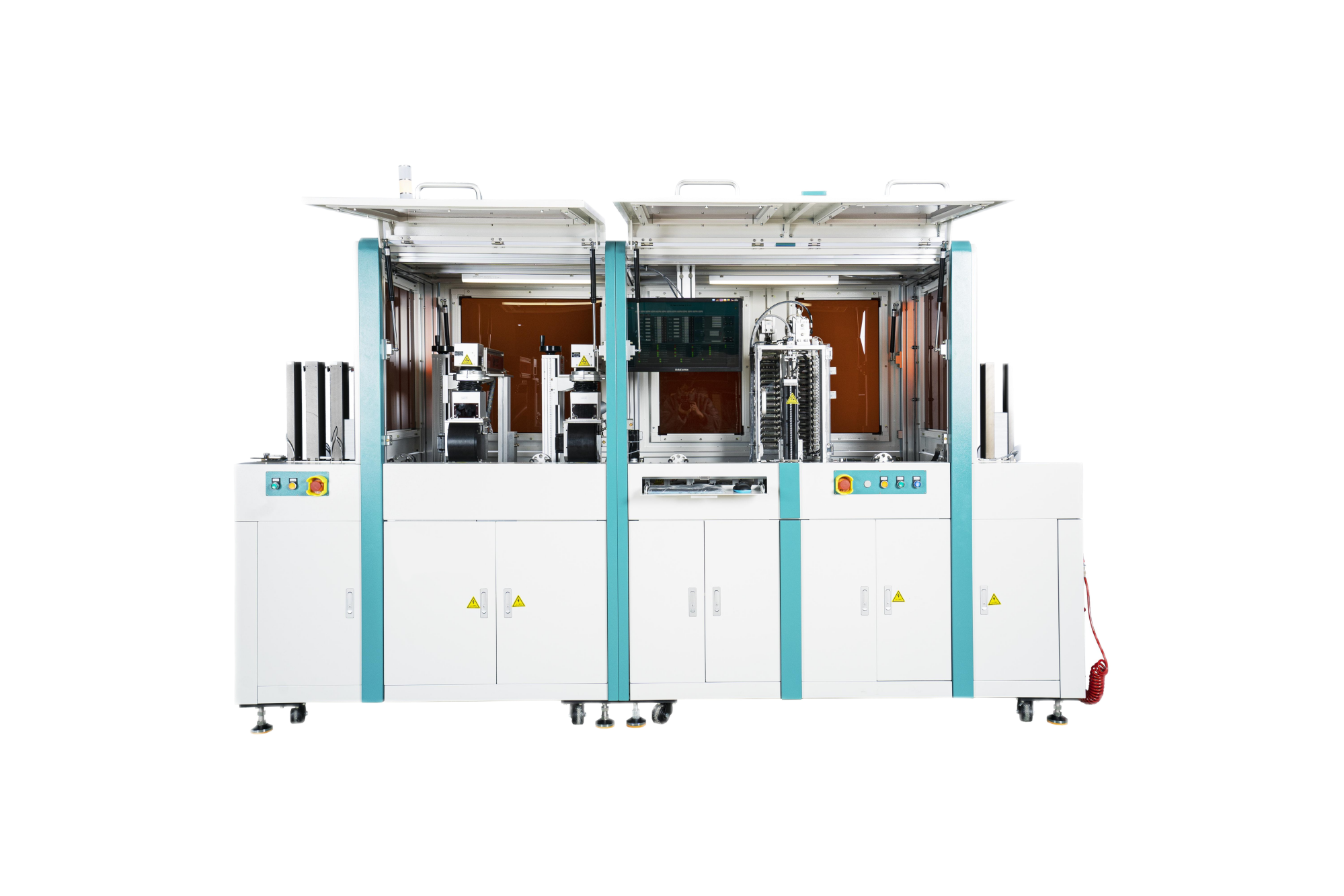

The IC Card Personalization System is a large, professional and industrial IC card personalization equipment which is applied to contact ISO card (one chip in one card), half card (two chips in one card) as well as quarter card (1 card with 4 chips).
PC & servo control. The machine can run 24 hours×7 days with stable and excellent performance, and the maximum speed of completing read/write and laser graphical printing can reach 8,000 cards/h.
According to the production requirement, it can be equipped with 8-64 contact or contactless processing stations (for 1~4 chips) with Zowinda or other reader, 1~2 sets of laser graphical printing units, several OCR inspections are optional.
The system is composed of three parts: mechanical configuration, electronic control and data processor. All of them with online security monitoring. SDK, DLL (dynamic link library) and application interface are provided for users to develop their own card manufacturing software. And it supports background control, remote data loading, encryption, etc.

Stations/functions
1 x Card feeding magazine with the capacity of 500 ISO cards.
1 x Double card detection.
1 x Color sensor.
1 x Chip detection sensor.
1 x Double card detection before barrel entry.
1 x Chip personalization barrel with 64 Zowinda reader for 1 chip in 1 card, and 2 chips in 1 card,4 chips in card; (with 128 contact encoding heads; when encoding, there are 32 cards been personalized (1 chip in 1 card or 2 chips in 1 card) inside the Tower Stations)

Product Parameters

Designation：Personalized machine

Card Materials：ABS,PVC,PETF,PETG,PC,PC-ABS

Card sizes：85.6mm X 54mm X 0.5-0.8mm

Total power：3KW

Electric power source：AC 220V 50/60HZ

Dimensions：L:2740mm X W:800mm X H:1830mm

Weights：About 1100Kg
