Sheet Shearing Machine (with Laser)

Product Overview:

Our Sheet Shearing Machine is a cutting-edge solution designed for precision edge cutting and laser engraving of inlay sheets. This highly automated system utilizes a vision system to ensure accurate positioning of the sheets before cutting, while also integrating a Laser Engraving Unit for precise marking. The machine is ideal for applications that require high-speed, high-accuracy shearing, such as inlay production, PVC/ABS sheet cutting, and custom manufacturing of inlay sheets.

Key Features & Benefits:

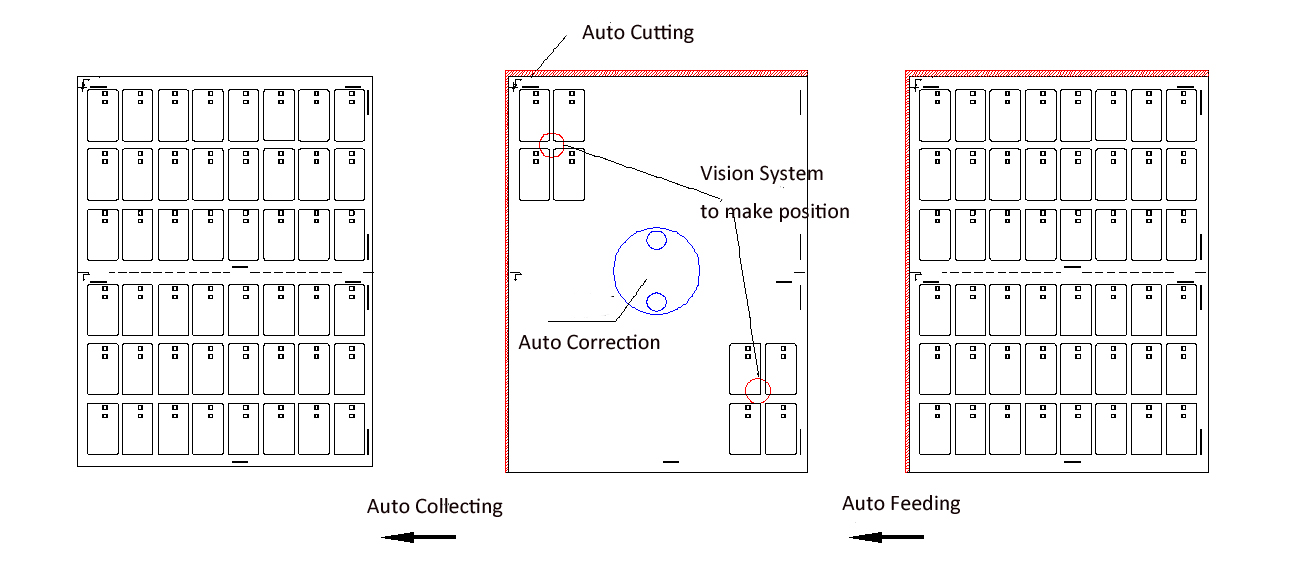

1.Automatic Shearing:

• The machine performs automatic right-angle edge cutting for inlay sheets with incredible precision.
• Featuring auto feeding, calibration, shearing, laser engraving, and auto collection for seamless operation.

2.Vision System for Precision:

• Equipped with two high-resolution cameras for accurate inlay position recognition. Achieves positioning accuracy of ±0.015mm.

3.Advanced Servo System:

• Three-axis servo systems provide automatic shearing correction for stable and accurate performance.
• Ideal for cutting sheets of varying thickness and material types, with low noise during operation.

4.Laser Engraving Integration:

• After cutting, the machine uses a Laser Engraving Unit to apply precise laser markings on the upper left corner of the sheet.
• Provides high-quality, consistent marks for product identification and traceability.

5.Flexible Sheet Rotation:

• Capable of rotating sheets 180 degrees at the cutting station, allowing for cutting on all four edges. Typically, the machine cuts two edges, but this feature enables cutting of all four sides when required.

6.Easy Operation with PLC + HMI Control:

• The machine is controlled by a user-friendly PLC and HMI system, ensuring easy setup, operation, and parameter adjustments.

7.High Efficiency:

• Capable of processing 550 to 800 sheets per hour, depending on sheet size, ensuring high production yield.
• Automated feeding and collecting systems allow for continuous operation with minimal manual intervention.

8.Durable, High-Quality Punching Tools:

• CNC-machined punching tools ensure high cutting accuracy and a long operational life. Tools are replaceable and can be re-ground for extended use.

9.Versatile Material Compatibility:

• Suitable for cutting a wide range of materials including PVC, ABS, and other types of sheet materials.

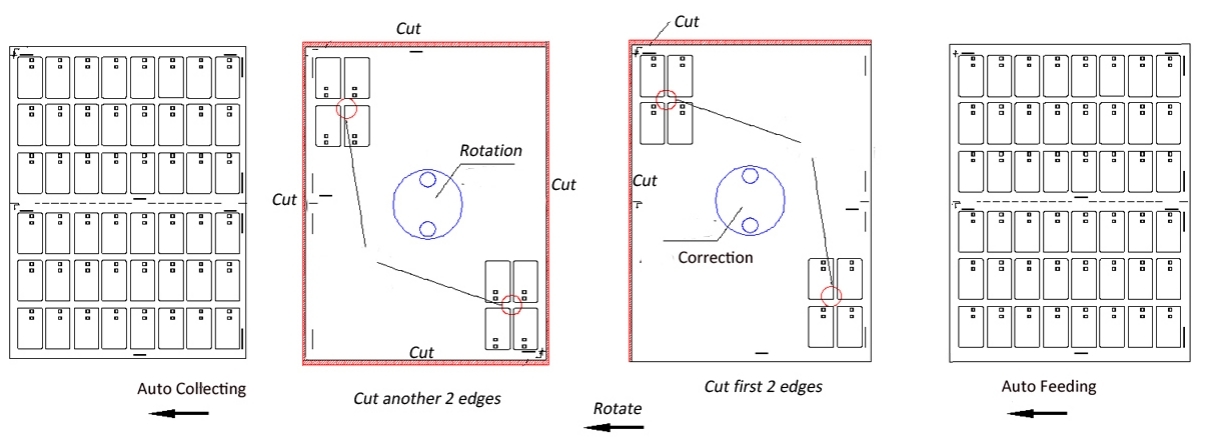

The machine also has the Sheets Rotation function, which could rotate the sheets into another 2 edge sides for cutting. So under this way, all 4 edges of the sheet could cut by this machine, and also the machine intergrates the Laser Engraving unit for laser marking. As below illustration shows:

Applications:

The Sheet Shearing Machine is perfect for industries requiring high-precision sheet cutting and engraving, including:

• Inlay production (for smart cards, ID cards, etc.)
• Electronics manufacturing
• PVC/ABS sheet cutting
• Custom manufacturing applications

Technical Specifications (Sheet Shearing Machine)

Why Choose Us?

• Customization: Our Sheet Shearing Machine can be customized to meet your specific needs, whether you're dealing with unique material types, custom sheet sizes, or require additional functionality.
• High Precision & Speed: Achieve unparalleled cutting accuracy and fast processing speeds for high-volume production.
• Comprehensive Automation: With automated feeding, cutting, rotation, and laser engraving, this machine streamlines your workflow and boosts productivity.
• Durable Design: Built with robust materials and high-quality components, this machine is designed to perform reliably in demanding environments.

Transform Your Production ProcessOptimize your manufacturing operations with our Sheet Shearing Machine. Whether you’re in the smart card industry, electronics manufacturing, or any other sector requiring precision sheet cutting, our solution guarantees efficiency, precision, and superior output quality.
